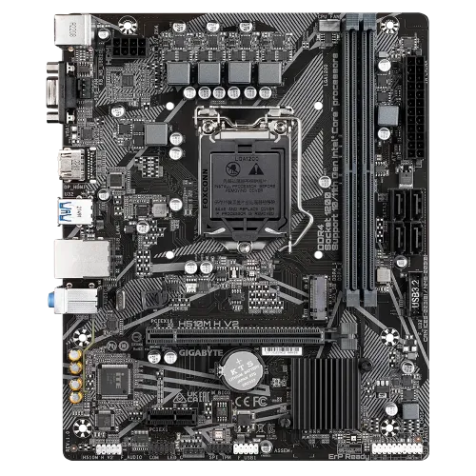

Name: GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard
Brand: GIGABYTE
Price: 10298.00 BDT
Availability: InStock

GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard

GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard

Available: In Stock

Based on 0 reviews. - Write a review

10,298৳

Ex Tax: 10,298৳

Qty

Add to Cart

Buy Now Question

Add to Wishlist Compare

Basic Information
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor: 22.6cm x 18.5cm
Supported CPU	LGA1200 package:br> 11th/10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors L3 cache varies with CPU
Chipset	Intel H470 Express Chipset
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Maximum Memory	64GB (32 GB single DIMM capacity)
Slots	2 x DIMM
Supported Memory	10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.)
Type	DDR4
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * Support for HDMI 1.4 version and HDCP 2.3.
Connector & Ports
D-Sub (s)	1 x D-Sub port
HDMI	1 x HDMI port

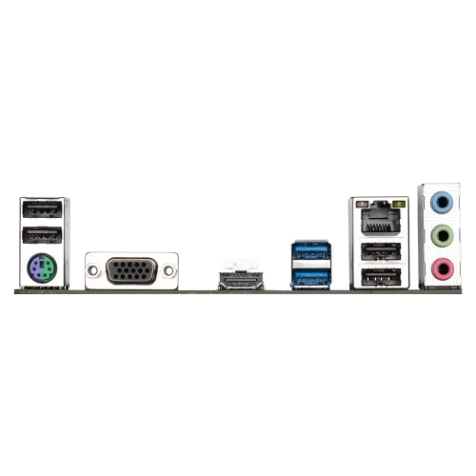

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
RAID	RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB (s)	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Warranty Information
Warranty	03 Years Warranty

GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard

GIGABYTE H510M H V2 Micro ATX Motherboard is a feature-rich and reliable platform designed to support 11th and 10th Gen Intel Core processors. With its robust construction, compact size, and essential features, this motherboard is an excellent choice for home, office, or gaming builds. The H510M H V2’s Micro ATX form factor makes it ideal for small to mid-sized PC cases, offering flexibility for compact builds. It supports up to 64GB of DDR4 RAM across two DIMM slots, enabling seamless multitasking and enhanced system responsiveness. Its HDMI and VGA ports ensure compatibility with a range of displays, delivering crisp visuals when paired with integrated Intel UHD Graphics. Equipped with USB 3.2 Gen 1 ports, multiple SATA ports, and an M.2 NVMe slot, the motherboard provides ample options for fast storage and external devices. The PCIe x16 slot supports dedicated GPUs, making it suitable for gaming or professional workloads. The Ultra Durable components from GIGABYTE ensure stability and longevity. Features like temperature monitoring, smart fan controls, and high-quality capacitors enhance system reliability under demanding conditions. The GIGABYTE H510M H V2 Micro ATX Motherboard combines modern features, reliable performance, and a compact design, making it a perfect foundation for 11th and 10th Gen Intel-based PCs. Its versatility and robust construction suit both budget-conscious users and performance enthusiasts.
